Polyethylene for water meter register box
box for the hydrotakes or meter for water simple.
Design:

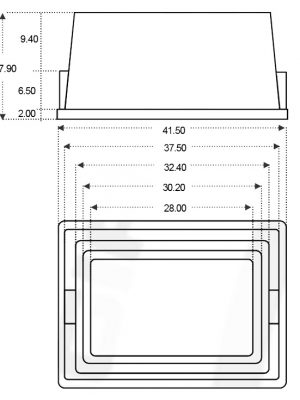

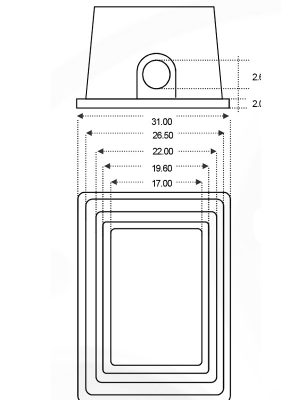

Rectangular with base in measures and dimensions set out in flat-figure 1
Material of manufacturing:
Polyethylene of the high resistance.
Cover specifications:

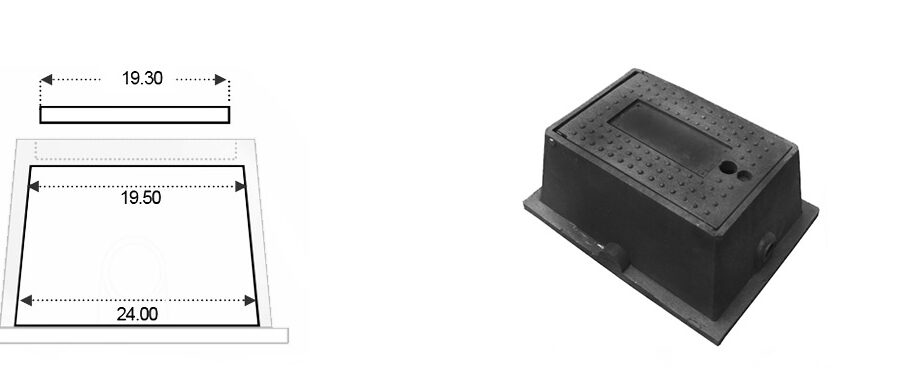

Measure 29.00(+/-3%)x 19.30(+/-3%) x 1.80 cm(+/-3%), its design is rectangular touse
pedestrian or sidewalks, placement is on the box or registration, the opening frame
top is bizagra by two nuts "Octopus" placed each one between
the cover and the frame to achieve radio for its opening, their elements of fastening
are by means of two screws of 1 / 4 and rope standard that is inserted by a side
holding to it cover with regard to your frame, it cover takes recorded
the legend "water" or name of the manufacturer.
Specifications of the frame and box:
Monolithic, rectangular design / v measurements are in three positions being his

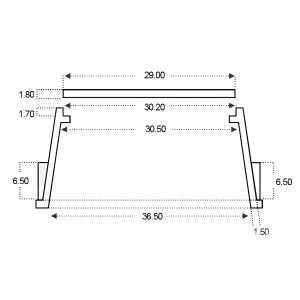

Base 41.50 cm (+/-3%) x 31.00 (+/-3%) 17.90 height cm (+/-3%) the framework of reception of the
top is 30.20 cm(+/-3%) x 19.60 cm(+/-3%), the item has no background, there are two
sides long blind and two costs, planned two inputs of diameter 2.60 cm for the
inclusion of the system of connections.
Weight: 4.50kg+/--5%
Construction procedure:
A rectangular ditch of approximate dimensions of 50.00cm x 65.00cm x 20.00cm deep is made so that the element is placed with some slack in its edges duly aligned with the trench that will receive the lines for potable water, the bottom should compact as best as possible to achieve a correct leveling of the element to the cloth of the earthenware, once verified the correct leveling occurs with the filling of the four sides compacting it as best as possible. It is recommended to prepare a concrete floor in the base of settlement of the box in order to achieve a proper settlement and correct leveling, it is also suggested to check the tightness settings of the input and power connections of the hydraulic flow.
Optional elements:
You can request cover sheet security and system connections, consult with the manufacturer the options available, all the metal parts which are used are grade regulations NMX-H-004, 43 microns thick.
Considerations General:
The material must be dense, rigid and highly resistant to compression, to wear by abrasion to impact, to the attack of chemical products, to the pedestrian live load and relieving vehicular point load and to the disintegration of the body
box for the hydrotakes or meter for water double.
box hydrotakes or meter for water of type double.
Design:

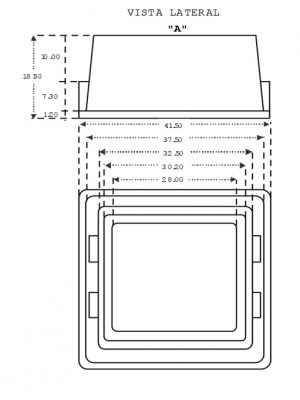

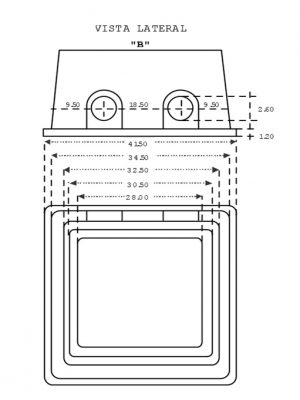

square based on measurements and dimensions set out in plane-figure 1
Manufacturing materials:
polyethylene of high resistance
Cover specifications:
Measure 29.00 x 29.00 x 2.50cm x, its design is rectangular, for pedestrian use or stools, its placement is on the frame of the box or register, the opening of the lid is hinged by means of two nuts "octopus type" placed each one between the lid and the frame so that it obtains radius for its opening, its clamping elements are by means of two screws of 1/4 "and standard cord that are inserted for a cost holding the lid with respect to its frame , the cover has the legend "water" or manufacturer's name engraved, and has a resistance to the specific load of 2,950 * tons
frame and box specifications:

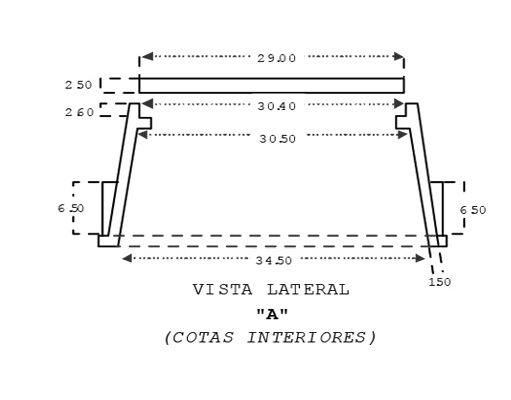

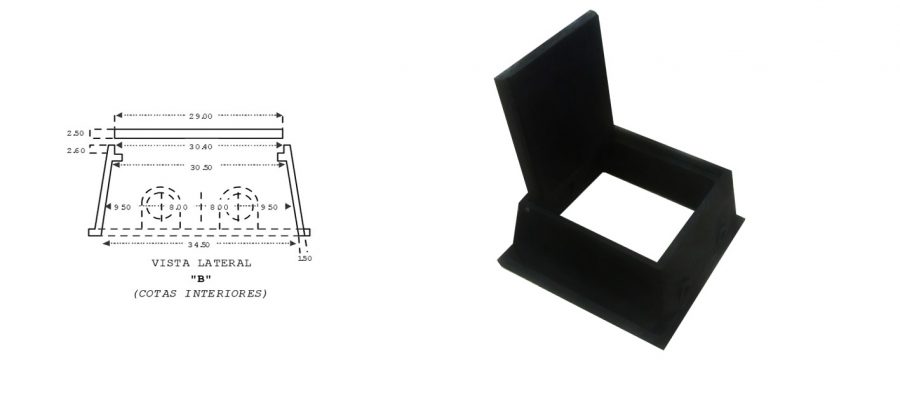

Monolithic, rectangular design in trapezoidal shape its measurements are interpreted in three positions with its base 41.50cm x 41.50cm its height of 18.50cm and its lid reception frame of 30.20cm x 30.50cm, the element has no bottom and has two blind sides and two provided with circular entrances of diameter 2.60cm to allow the insertion of the hydraulic flow tube of the connection system.
construction procedure:
A rectangular ditch of approximate dimensions of 50.00cms x 50.00 cms x 25.00 cm deep is elaborated in order that the element is placed with some slack in its edges, and duly aligned with the trench that will receive the lines for potable water, the bottom must be compacted as best as possible to achieve a correct leveling of the element to the cloth of the resting pottery once verified the correct leveling is carried out with the filling of the four sides comparing it as best as possible. It is recommended to prepare a floor with hydraulic concrete in the base of settlement of the box in order to achieve an adequate settlement and correct leveling, it is also suggested that the tightness adjustments of the input and supply connections of the hydraulic flow be verified.
elements Optional:
You can fix the cover with safety plate and consult the manufacturer for the available options, you can also have the connection system ready to receive the water meter and the water intakes. all the metallic elements that are used are of normative degree NMX-H-004, of 66 microns of thickness.
considerations General:
The material must be dense, rigid and highly resistant to compression, wear abrasion to impact, to the attack of chemical products to the pedestrian live load and light vehicular load and to the disintegration.
